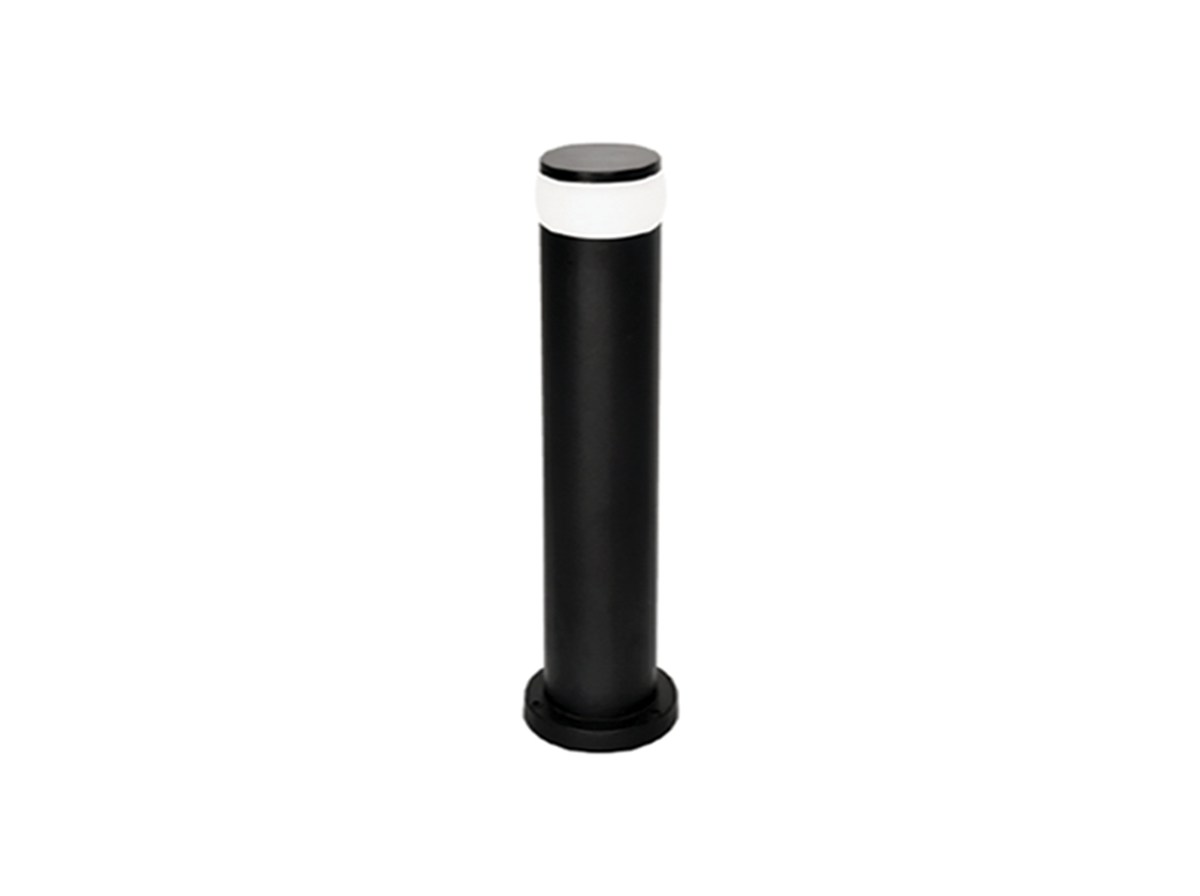

60 BOLLARD LIGHT

Sturdy and reliable bollard lights for walkways

60 BOLLARD LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0061

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Specially designed to be used in damp and rough areas
  • Aesthetic asymmetric light distribution with specially designed lens
  • Front cover lens does not get yellow with long term usage
  • Long life ensure low maintenance cost

DIMENSIONS ( mm )

MODEL A B C D
YH-4001 220 600 180 120
YH-4204 145 600 200 -
YH-3901 150 600 170 -
YH-3801 100 600 170 -
YH-3702 200 600 100 -
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
YH-4001 12 W 960 lm 80 lm/w
YH-4204 12 W 960 lm 80 lm/w
YH-3901 12 W 960 lm 80 lm/w
YH-3801 2X5 W 800 lm 80 lm/w
YH-3702 12 W 960 lm 80 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K, 6000K
  • Housing Colours: White, Black, Grey
  • High Color Rendering: CRI>80
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Class I Equipment
  • Product is made up of Aluminium
  • Application: Gardens, Covered Parking Lots, Boundary Walls, Staircases, Public Walkways etc.
  • High Power Factor: Pf> 0.9
  • Types of protection: IP65
