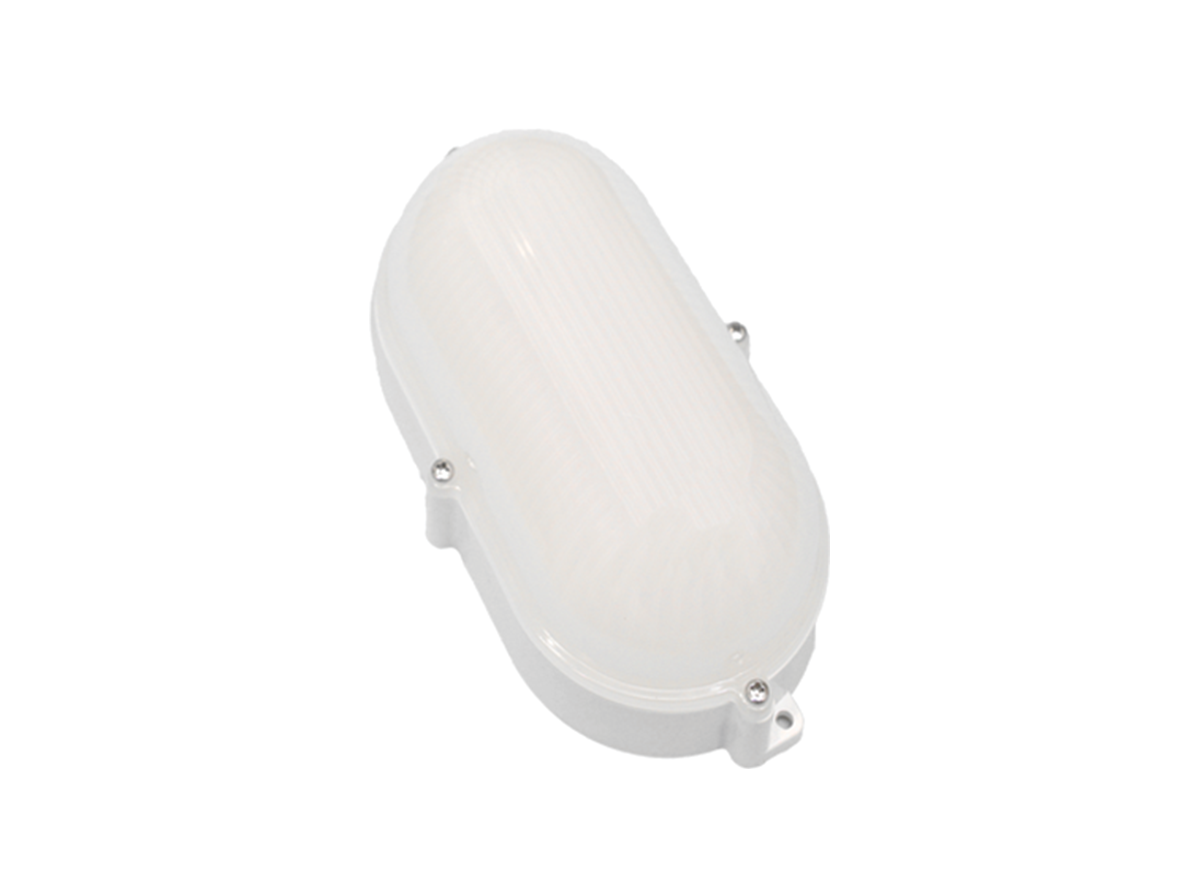

BULKHEAD LIGHT

Elegant surface mounted luminaires for outdoor use

BULKHEAD LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0054

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Specially designed to be used in damp and rough areas
  • Homogenous light distribution with specially designed lens
  • Smooth and glare-free feel; comfortable to eyes
  • Front cover lens does not get yellow with long term ussage

DIMENSIONS ( mm )

MODEL A B C
1606U-MFPL1b 157 45 80
0506X-MPL7c Ø175 50 -
MODEL NO POWER (W) LUMENS (LM) EFFICIENCY (LM/W) SHAPE
1606U-MFPL1b 9W 720 lm 80 lm/w Oval
0506X-MPL7c 12W 1000 lm 83 lm/w Round

PRODUCT FEATURES

  • Standard CCT: 3000K, 6000K
  • Beam Angle: 120°
  • High Color Rendering: CRI>80
  • High Power Factor: Pf> 0.9
  • Types of protection: IP65
  • Long >50,000 hours lamp lifetime
  • Operates at 170-250VAC 50/60Hz
  • Class II Equipment
  • Product is made up of Poly Carbonate
  • Application: Gardens, Covered Parking Lots, Boundry Walls, Jaccuzi, Suana Room, Laundry etc.
