ARCHITECTURAL LIGHTING Spec Archive

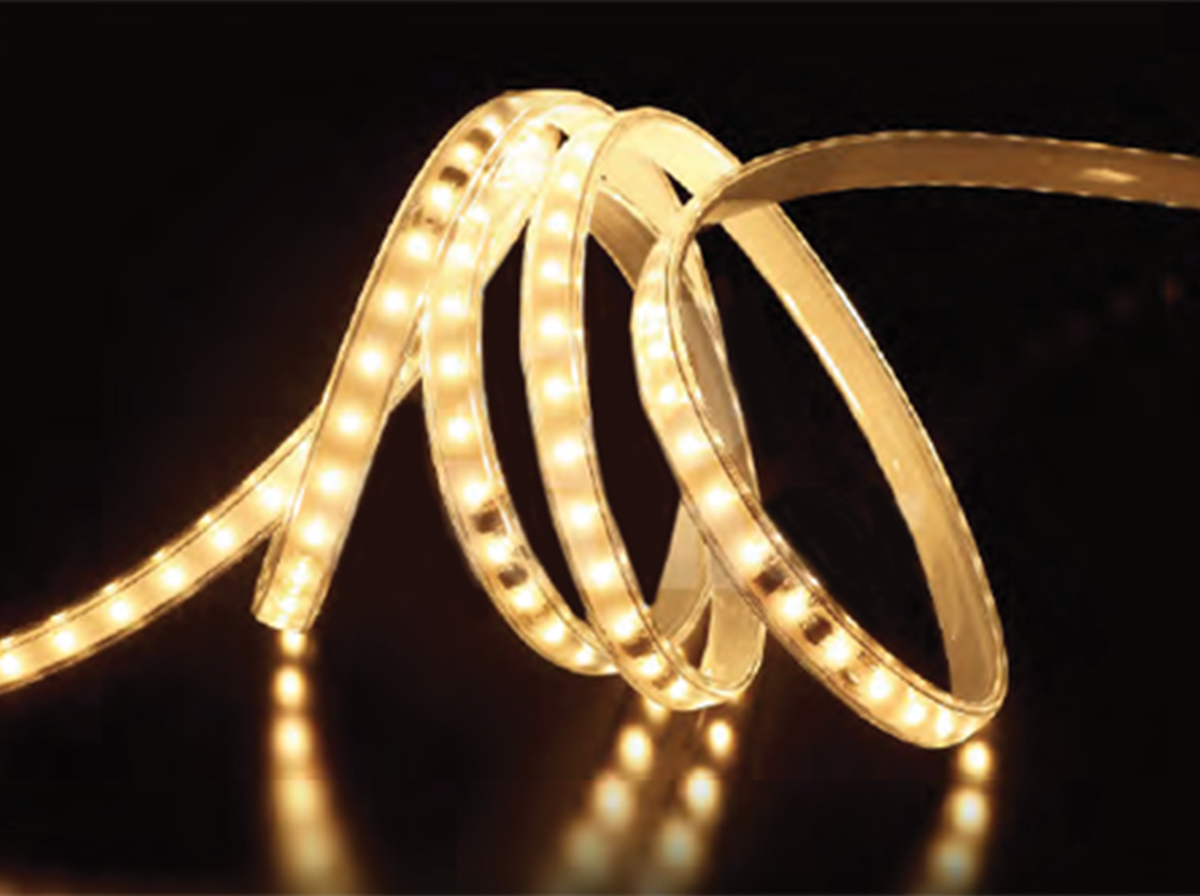

FLEXIBLE CLEAR STRIP LIGHT

Highly Uniform and consistent ambient light for indoor and outdoor use

FLEXIBLE CLEAR STRIP LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0052

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Silicon co-extrusion process, IP67 protection level, with internal structure completely protected against water splashes and dust.
  • Excellent toughness, simple and stylish appearance, delicate and unique structure design.
  • Uniform light output, soft and dotted-free, perfect for seamless architectural integration.
  • Environmentally friendly silicone material, high transmittance, weather resistance, UV resistance, and salt spray resistance.
  • Unique architectural tool for curved applications, providing accent lighting for building shapes, path guidance, and signage.

DIMENSIONS ( mm )

MODEL NO A B
OS-N0410 4 10
OS-N0612 6 12
OS-N1010 10 10
OS-N1212 12 12
OS-N1615 16 15
OS-N2014 20 14
MODEL NO POWER (W/M) LUMENS ( LM/M ) EFFICIENCY (LM/W)
OS-N0410 5W 350 lm 70 lm/w
OS-N0612 8W 600 lm 75 lm/w
OS-N1010 10W 800 lm 80 lm/w
OS-N1212 12W 1020 lm 85 lm/w
OS-N1615 15W 1275 lm 85 lm/w
OS-N2014 18W 1440 lm 80 lm/w

PRODUCT FEATURES

  • Standard CCT: 2700K, 3000K, 4000K, 6000K, Red, Green, Blue, RGB, RGBW
  • Beam Angle: 120°
  • High Color Rendering: CRI>90
  • Types of protection: IP67
  • Long >50,000 hours lamp lifetime
  • Operates at 24VDC
  • Class III Equipment
  • Product is made up of Silicone
  • Application: Facades, bridges, pathways, signage, interior design etc.
