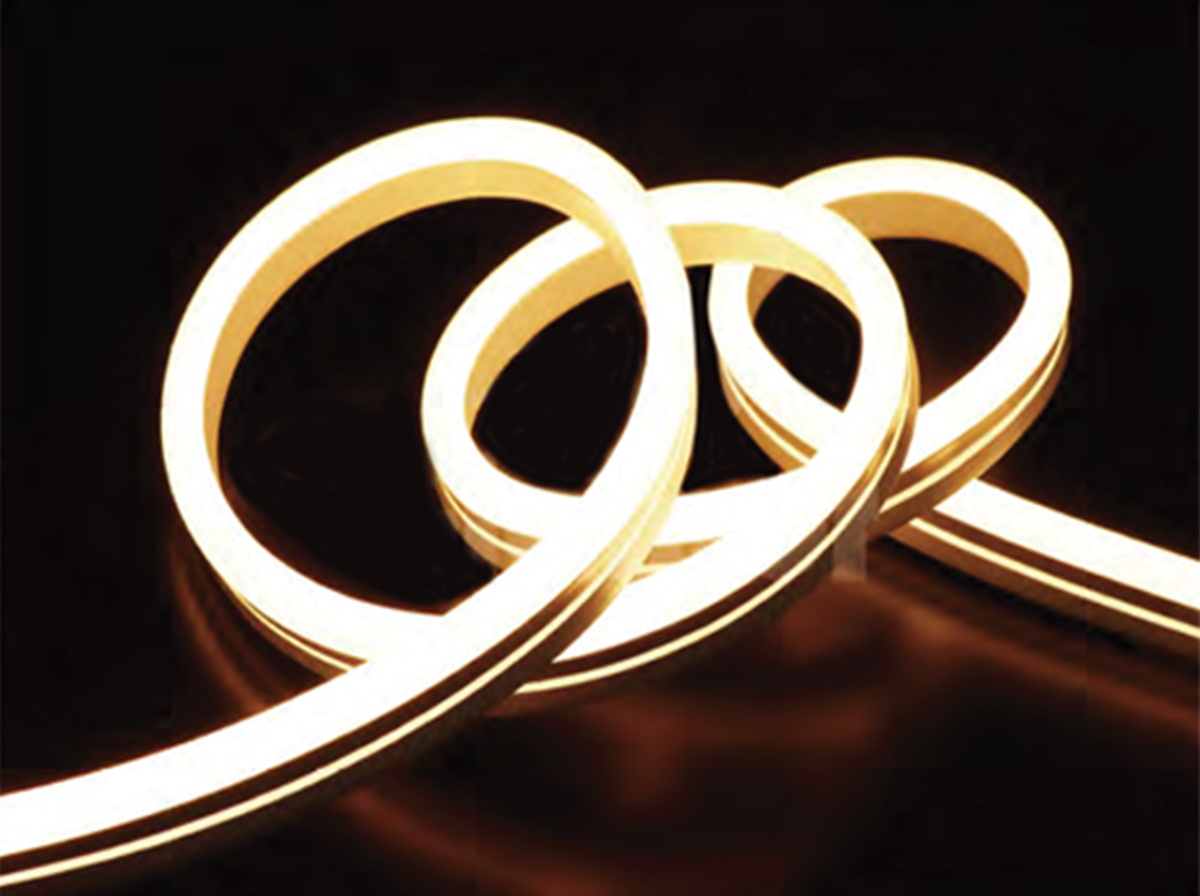

FLEXIBLE NEON STRIP LIGHT

Highly Uniform and consistent ambient light for indoor and outdoor use

FLEXIBLE NEON STRIP LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0053

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Without any copper wire inside
  • Single side lighting effect
  • Good color consistency
  • No color change after bending or pressing
  • Easy connection & easy installation
  • Uniform lighting distribution without dark or hotspot

DIMENSIONS ( mm )

MODEL A B
WL-NS-24V 10 5
WL-NU-Y-X 16 8
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
WL-NS-24V 9W/m 390 lm/m 43 lm/w
WL-NU-Y-X 9W/m 405 lm/m 45 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K and 4000K
  • Beam Angle: 120°
  • High Color Rendering: CRI>80
  • High Power Factor: Pf> 0.9
  • Types of protection: IP65
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Working Temprature: -20°C to +40°C
  • Available with a 0.5m long power cord which can support 50m length
  • Cutting Unit: 1 meter
  • Class II Equipment
  • Product is made up of high-grade Silicone
  • Application: Cove lighting, commercial lighting, lobbies and conference centres, offices and shopping mall corridors, signages and decorative objects
