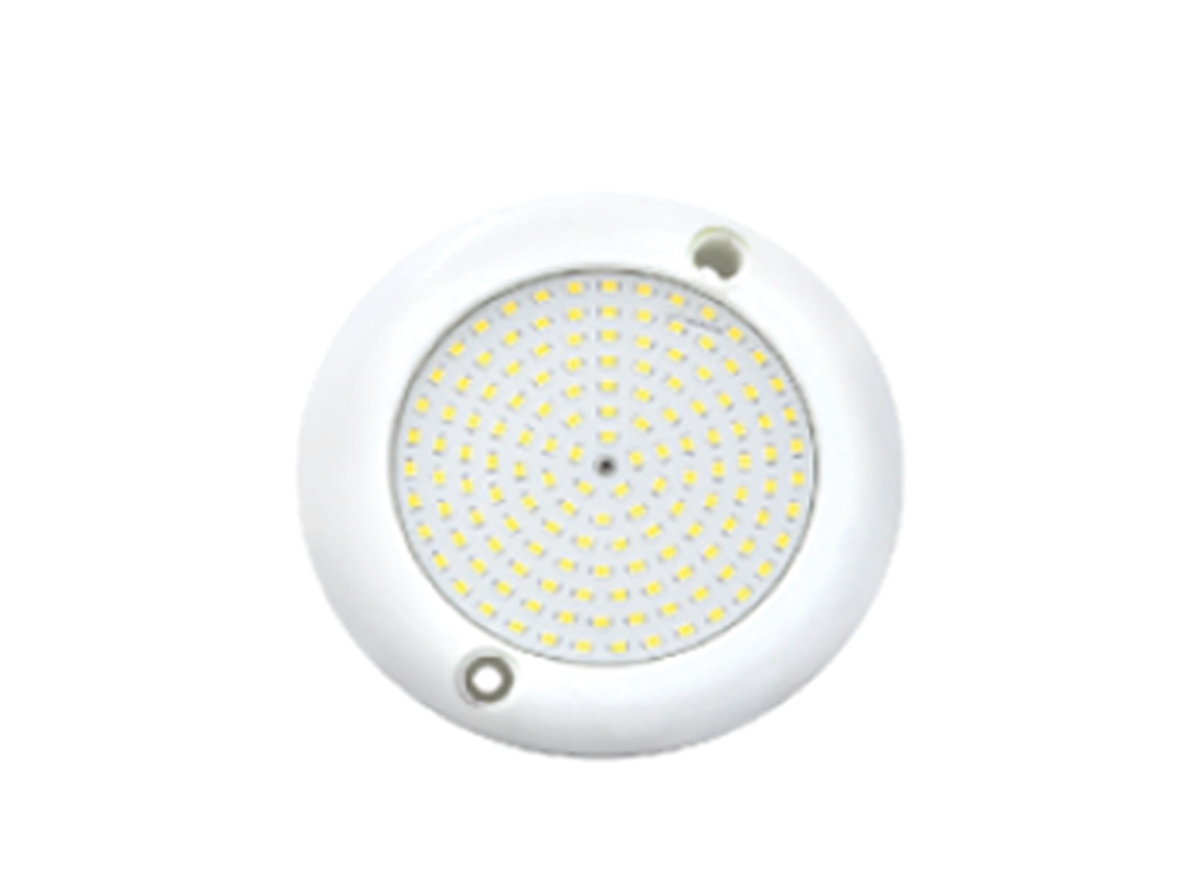

SWIMMING POOL LIGHT

Reliable and Sturdy luminaire for swiming pools and large water bodies

SWIMMING POOL LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0062

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Specially designed to be used in swimming pools and large water bodies
  • Easy and durable surface mounted installation
  • Front cover lens does not get yellow with long term usage
  • Excellent protection form physical impacts

DIMENSIONS ( mm )

MODEL A B
JD-YC120MS Ø125 28
JD-YC230MS Ø230 36
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
JD-YC120MS 12 W 1080 lm 90 lm/w
JD-YC230MS 24 W 2160 lm 90 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K, 6000K
  • Beam Angle: 90°
  • High Color Rendering: CRI>80
  • High Power Factor: Pf> 0.9
  • Types of protection: IP68
  • Long >50,000 hours lamp lifetime
  • Operates at DC/AC 12/24V
  • Class III Equipment
  • Product is made up of Aluminium
  • Application: Swimming Pools, Water bodies, Ponds etc
