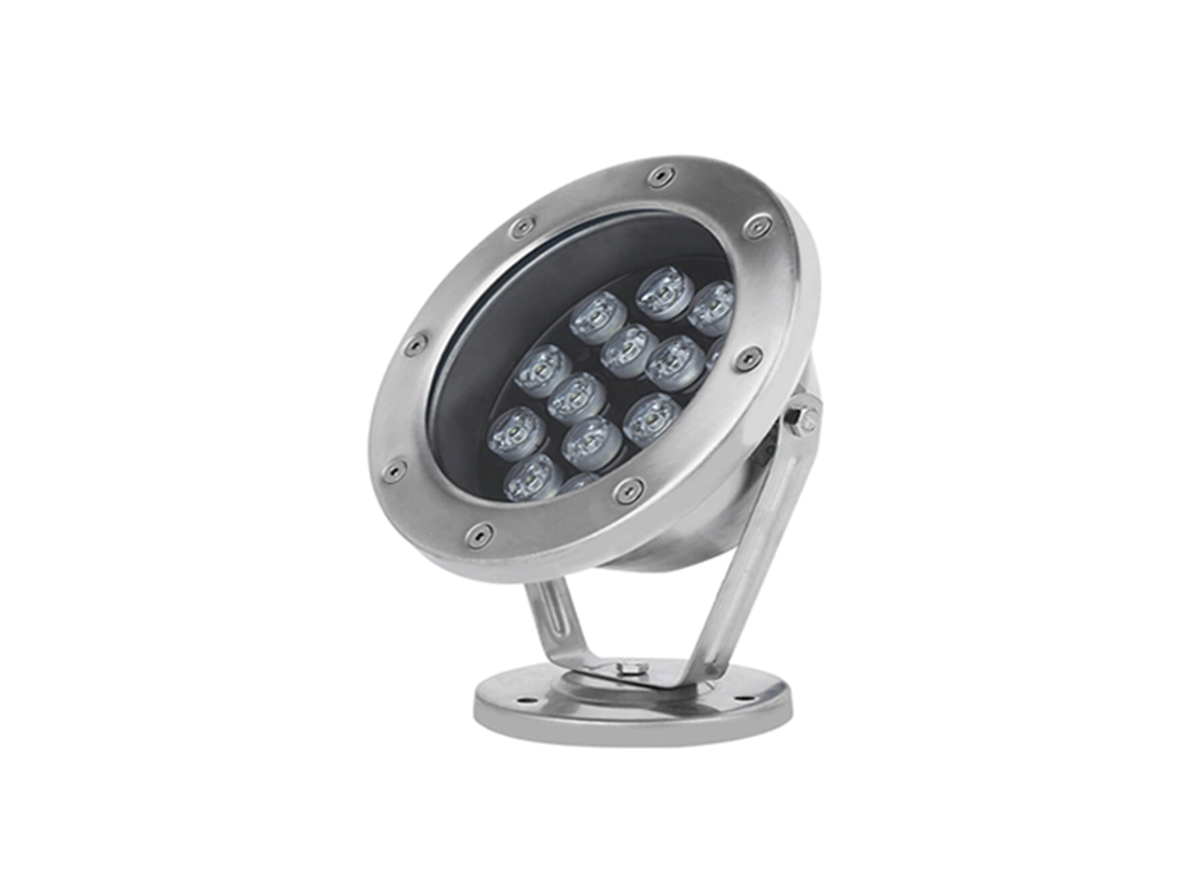

UNDERWATER & FOUNTAIN LIGHT

Sturdy luminaire for underwater application

UNDERWATER & FOUNTAIN LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0057

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Specially designed to be used in underwater and rough environments
  • Excellent protection form heavy rains, flooding and physical impacts
  • Sharp light enhances feel of the objects
  • Front cover lens does not get yellow with long term ussage

DIMENSIONS ( mm )

MODEL A B
OS-SC-B-002 Ø82 140
OS-SC-B-006 Ø160 220
OS-SC-B-007 Ø160 220
OS-SC-C-005 Ø180 230
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
OS-SC-B-002 3 W 240 lm 80 lm/w
OS-SC-B-006 9 W 720 lm 80 lm/w
OS-SC-B-007 12 W 960 lm 80 lm/w
OS-SC-C-005 18 W 1440 lm 80 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K, 6000K, RGB
  • Beam Angle: 9°, 15°, 30°, 60°, 90°
  • High Color Rendering: CRI>80
  • High Power Factor: Pf> 0.9
  • Types of protection: IP67 and IK08
  • Long >50,000 hours lamp lifetime
  • Operates at DC12/24V
  • Class III Equipment
  • Product is made up of Aluminium
  • Application: Gardens, Landscapes, Façade, Outdoor Public Areas
