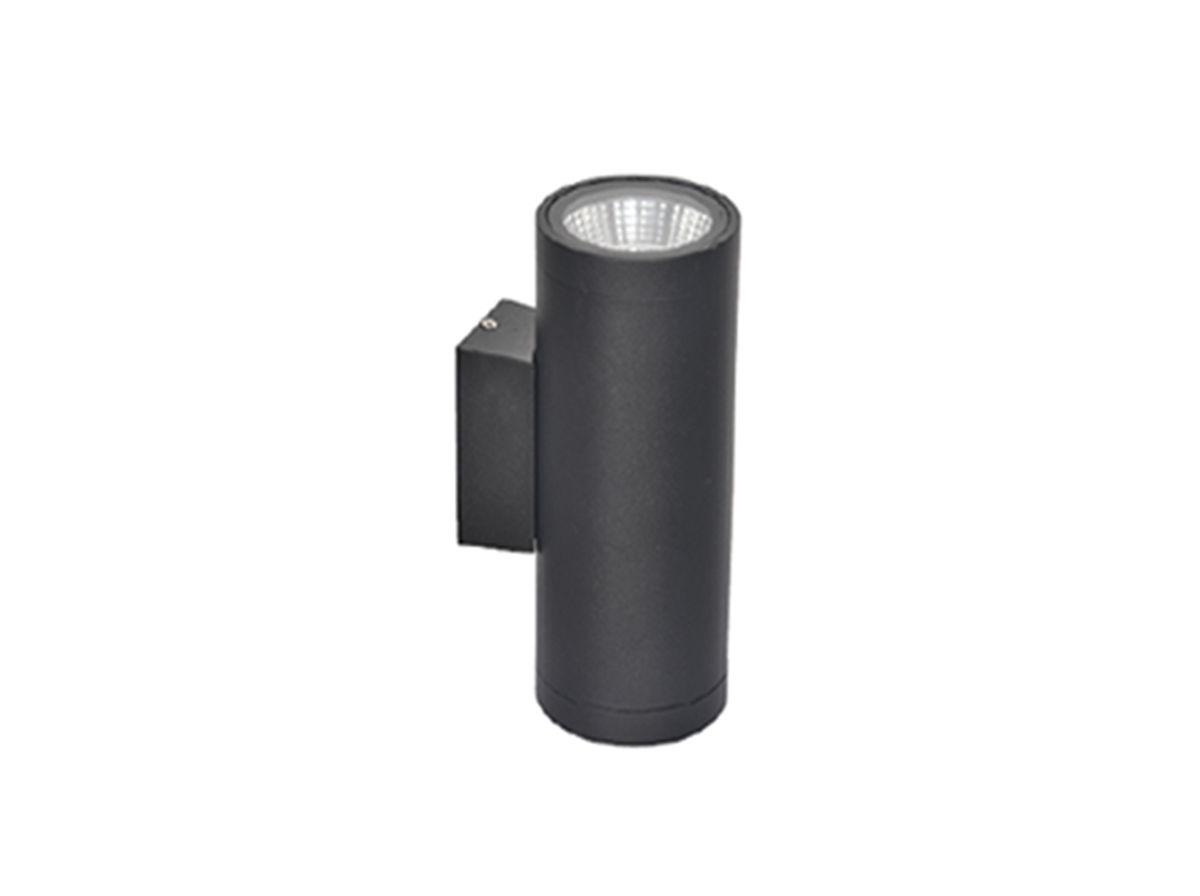

WALL LIGHT

Elegant wall mounted luminaires for outdoor use

WALL LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0059

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Sturdy plug-in ground light with a spike to light up nature
  • Excellent protection form heavy rains, winds and physical impacts
  • Sharp light enhances feel of the objects
  • Front cover lens does not get yellow with long term ussage

DIMENSIONS ( mm )

MODEL A B
OS-IT-A-003 Ø60 280
OS-IT-A-009 Ø155 410
OS-IT-A-018 Ø160 570
OS-IT-A-036 Ø180 600
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
OS-IT-A-003 3W 240 lm 80 lm/w
OS-IT-A-009 9W 720 lm 80 lm/w
OS-IT-A-018 18W 1440 lm 80 lm/w
OS-IT-A-036 36W 2880 lm 80 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K, 6000K
  • Beam Angle: 9°, 15°, 30°, 60°, 90°
  • High Color Rendering: CRI>80
  • High Power Factor: Pf> 0.9
  • Types of protection: IP65
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Class I Equipment
  • Product is made up of Aluminium
  • Application: Gardens, Landscapes, Façade, Outdoor Restaurants
