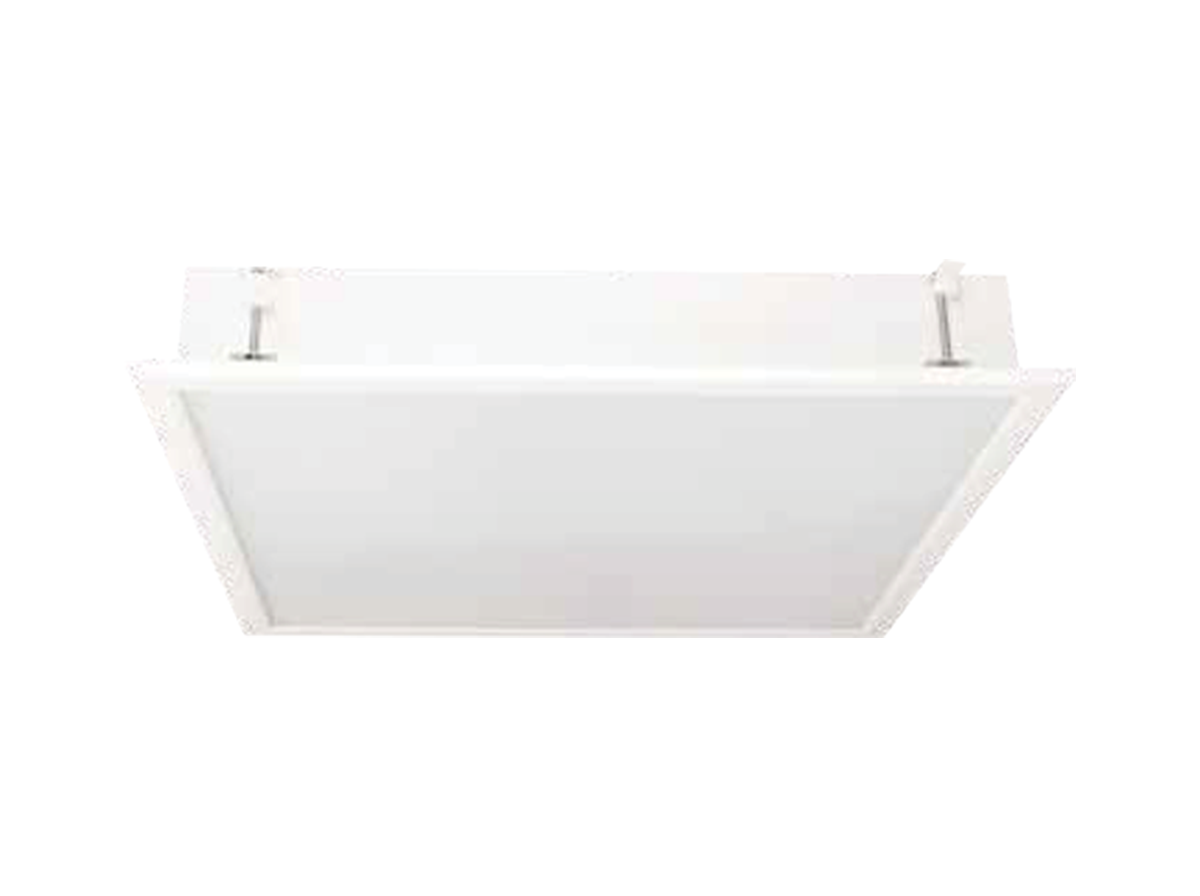

RECESSED CLEANROOM LED PANEL

Recessed Panel Light for speacialized Cleanroom Application

RECESSED CLEANROOM LED PANEL
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0064

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Smooth and glare-free feel; comfortable to eyes
  • Slim edge-lit cleanroom panel, available in standard sizes along with option of customization
  • Front cover lens does not get yellow with long term usage
  • Bevel-designed frame, no dust and easy to clean

DIMENSIONS ( mm )

MODEL A B C
PL-6060C1 595 595 92.5
PL-30120C1 295 1195 92.5
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
PL-6060C1 40W 4800 lm 120 lm/w
PL-30120C1 40W 4800 lm 120 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K, 4000K, 6500K
  • Beam Angle: 120°
  • High Color Rendering: CRI>80
  • Unified Glare Rating: UGR<22
  • High Power Factor: Pf> 0.9
  • Types of protection: IP65
  • Operates at 220-240VAC 50/60Hz
  • Long >50,000 hours lamp lifetime
  • Front Cover option: PC diffuser/Tempered Glass Cover
  • Can be equipped with Emergency Power Bank
  • Class II Equipment
  • Product is made up of Poly Carbonate Diffuser and Aluminium
  • Application: Lab, hospital, beverage factory, dust-free workshop, cleanroom etc.
