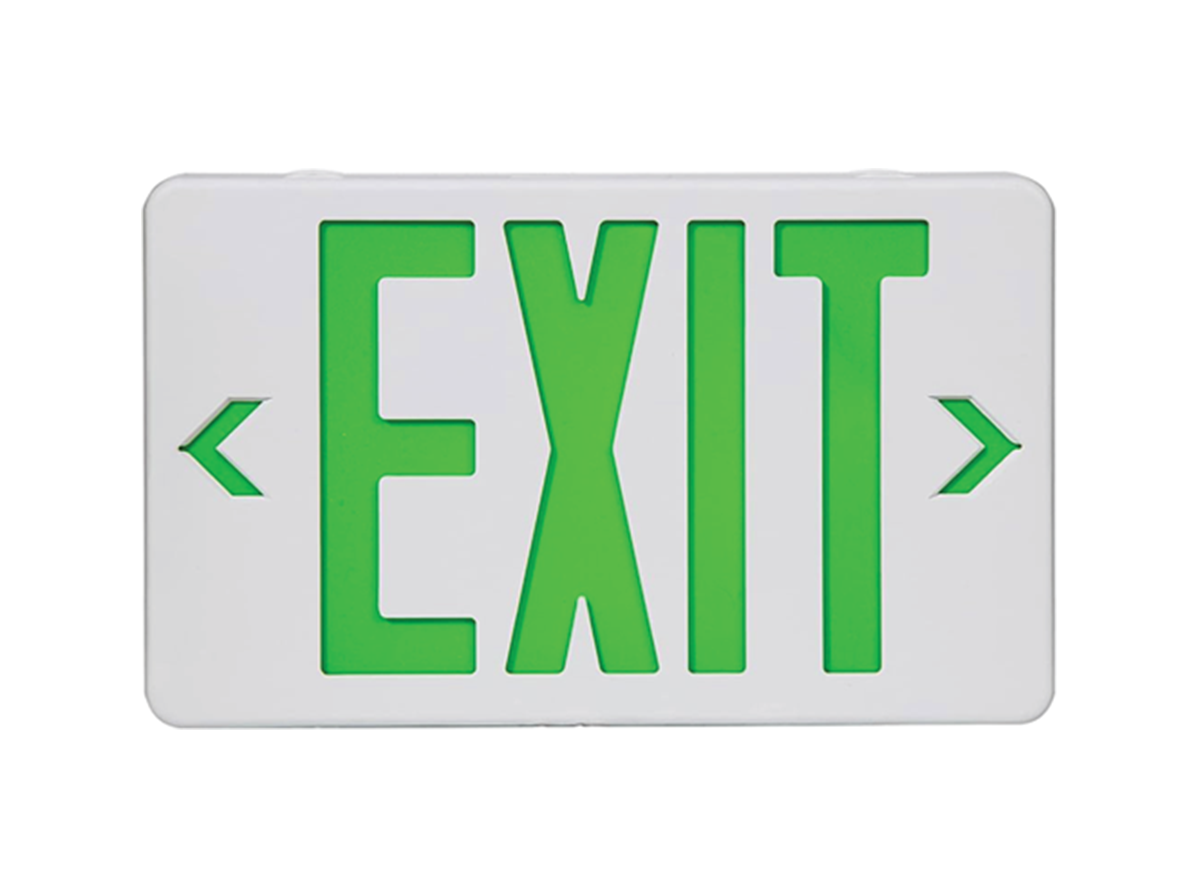

MAINTAINED EMERGENCY EXIT SIGN LIGHT

Reliable emergency light with long backup and durablity

MAINTAINED EMERGENCY EXIT SIGN LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0044

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Innovative, snap-together design allows for fast installation.
  • Universal (Wall, Side or Ceiling) mounting
  • Replaceable directional chevron inserts. Can be easily removed and reinserted.
  • Letters 6" height with 3/4" stroke.
  • Single or double face configuration.
  • UL 94V-0 flame rating
  • Suitable for damp location.

DIMENSIONS ( mm )

MODEL A B C WEIGHT (KG)
GX-200NR 182 295 46 0.9
MODEL NO POWER (W) BACKUP DURATION
GX-200NR 2W 180 mins

PRODUCT FEATURES

  • Available in Red and Green Colour signage
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Working Temprature is 10°C-40°C
  • Battery: 4.8V 600mAh Ni-Cd
  • Operates at 120/277VAC Dual Voltage 50/60Hz
  • Class II Equipment
  • Product is made up of Polycarbonate
  • Application: Offices, hotels, warehouses, factories, restaurants etc.
