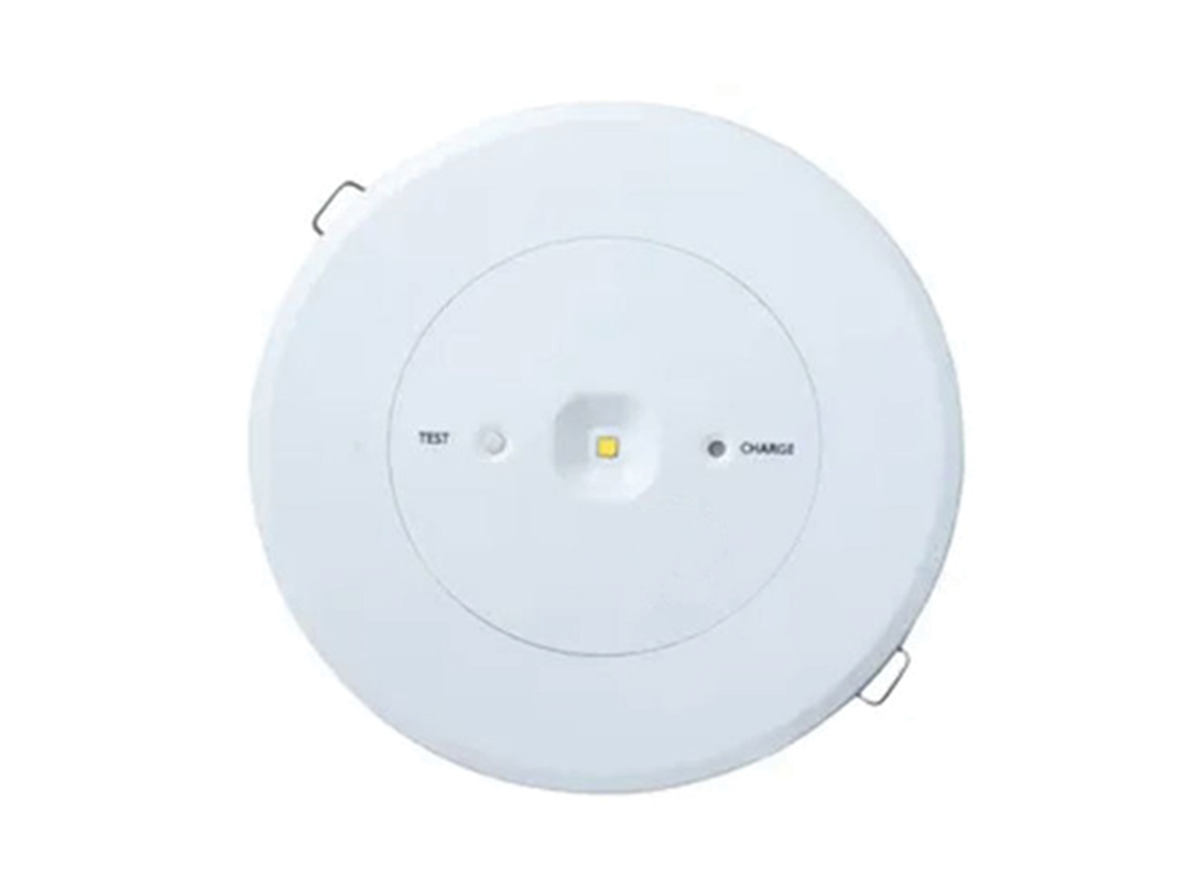

NON- MAINTAINED EMERGENCY DOWN LIGHT

Reliable recessed emergency downlight with long backup

NON- MAINTAINED EMERGENCY DOWN LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0045

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Can be recessed in ceiling, sloped ceiling or high ceiling
  • Long-life and reliable battery
  • Test switch and LED charge rate indicator

DIMENSIONS ( mm )

MODEL A B
EMD-5 308 140
MODEL NO POWER (W) BACKUP DURATION
EMD-5 5W 180 mins

PRODUCT FEATURES

  • Standard CCT: 6500K
  • Beam Angle: 90°
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Working Temprature is 10°C-40°C
  • Battery: 3.7V 2500mAH LIFE PO4
  • Operates at 220V-240VAC 50/60Hz
  • Class II Equipment
  • Product is made up of Polycarbonate
  • Application: Offices, hotels, warehouses, factories, restaurants etc.
