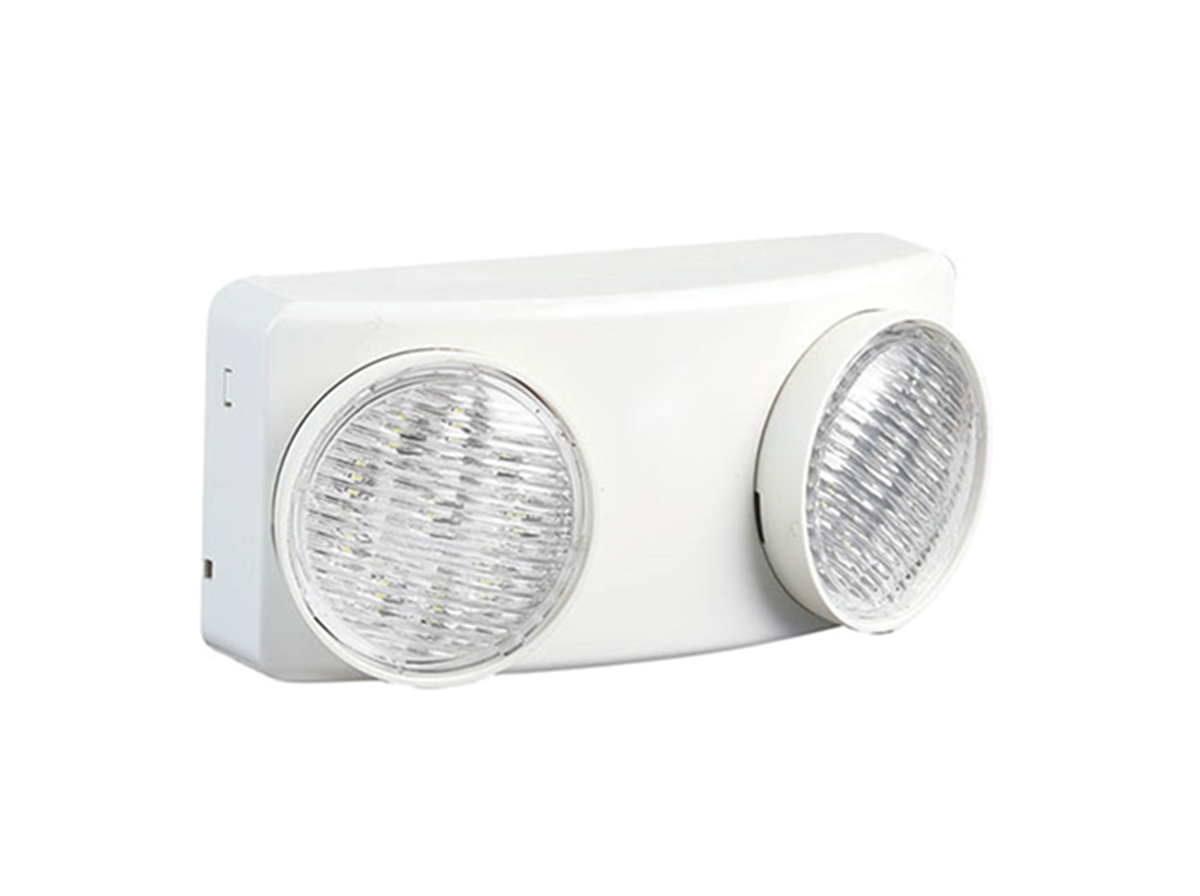

NON-MAINTAINED EMERGENCY LIGHT

Reliable emergency light with long backup and suitable brightness

NON-MAINTAINED EMERGENCY LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0042

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Two fully adjustable glare-free eyeball shape light heads for emergency light
  • Can be mounted on Wall or Ceiling. Covers area of 30 feet
  • Long-life and reliable battery
  • UL 5VA flamable material
  • Test switch and LED charge rate indicator
  • Available in 1'x4' and 2'x2' sizes

DIMENSIONS ( mm )

MODEL A B C WEIGHT (KG)
GXL-150 308 140 101 1
MODEL NO POWER (W) LUMENS ( LM ) BACKUP DURATION
GXL-150 2x5W 350 lm 180 mins

PRODUCT FEATURES

  • Standard CCT: 6500K
  • Beam Angle: 36°
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Working Temprature is 10°C-40°C
  • Battery: 6V4.5AH lead-acid battery
  • Operates at 120/277VAC Dual Voltage 50/60Hz
  • Class II Equipment
  • Product is made up of Thermoplastic ABS
  • Application: Offices, hotels, warehouses, factories, restaurants etc.
