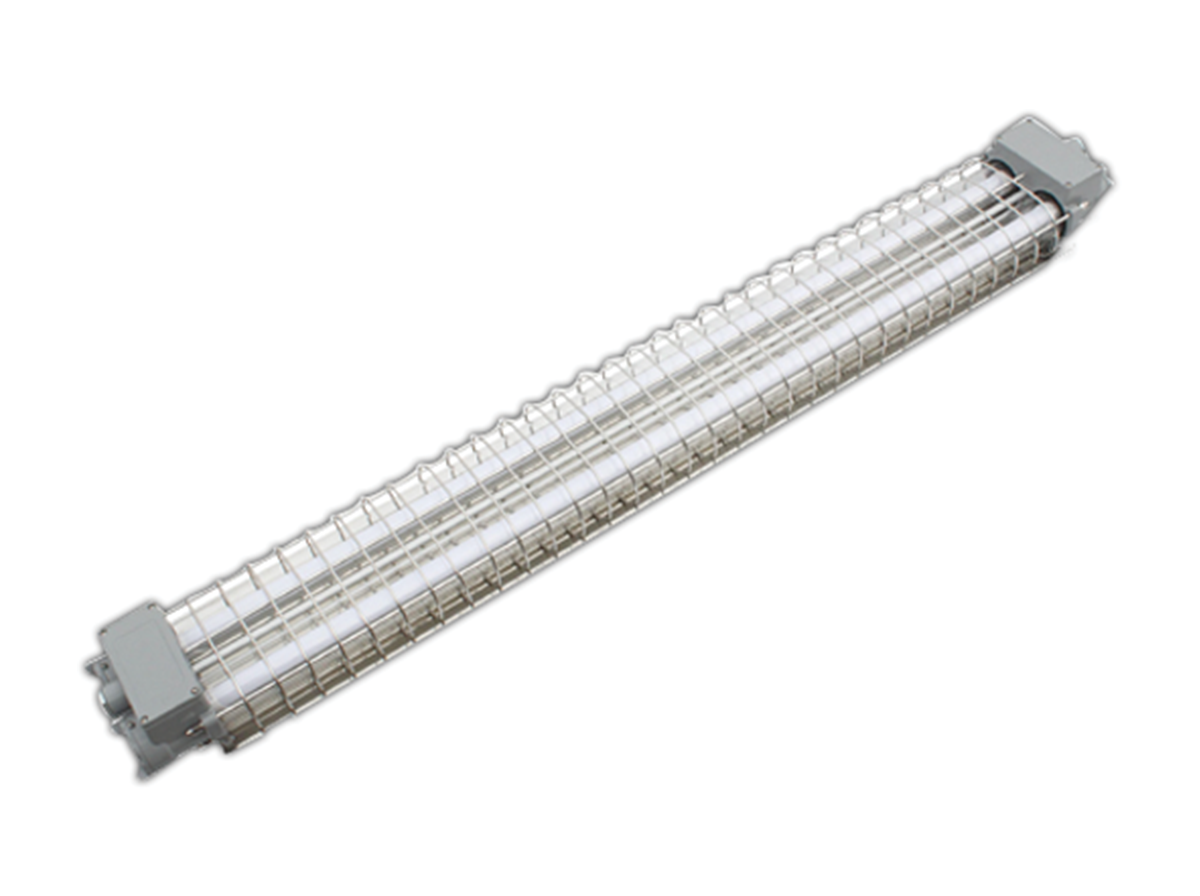

EXPLOSION PROOF TUBE LIGHTS

PRODUCT BENEFITS

• It is made using a special aluminium housing, suitable for long-term highly corrosive environment of offshore platforms, chlor-alkali, hydrogen sulphide, etc.
• Terminals are provided at both ends, can be directly wired in parallel, eliminating the junction box and installation costs.
• Derrick mounting fixture adopt high anti-corrosive aluminum and locking angle equipment, can be safely used in drilling platforms and high vibration environment.
• The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof, make the lamp an excellent high pressure environment

DIMENSIONS ( mm )

PRODUCT FEATURES

• Standard CCT: 3000K, 4000K, 6500K
• High Color Rendering: CRI>80
• Types of protection: IP66
• Operates at 90-264VAC 50/60Hz
• Working Temprature: -40°C to +55°C
• Gas explosive environment: Group IIA, IIB, IIC.
• Cable entry thread: M20×1.5, M25×1.5, NPT3/4", NPT1/2", G3/4"
• Class I Equipment
• Product is made up of Die-casting Aluminum. Bracket, reflector, guard, and all exposed fasteners adopt 304 stainless steel
• Application: Petrochemical plants, oil platforms, oil pump, housing, transit stations and other flammable and explosive places.
• Ex marking: Ex db eb IIC T6 Gb | Ex tb IIIC T80 Db, IP66
• Beam Angle: 120°
• High Power Factor: Pf> 0.9
• Long >50,000 hours lamp lifetime
• Zone1, Zone2; Zone21, Zone22
