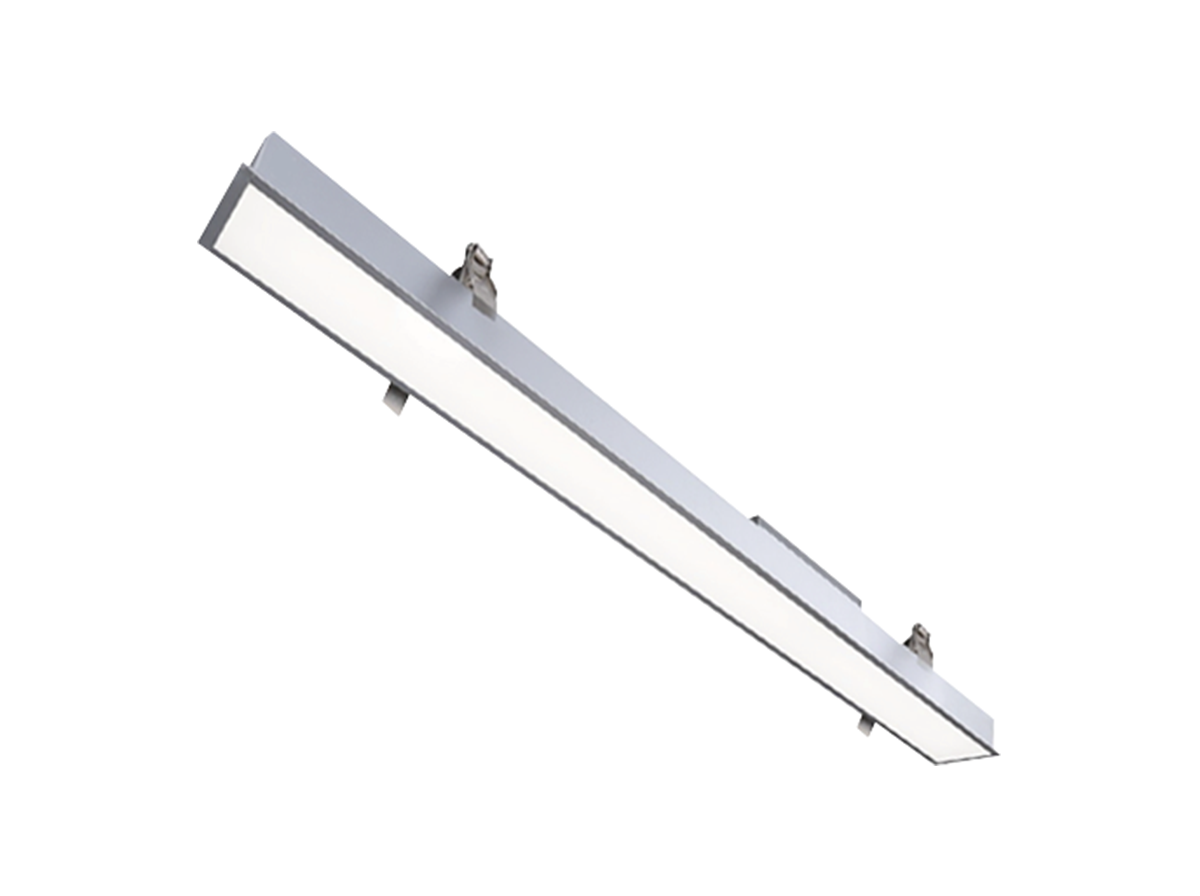

DUSTPROOF BATTEN LIGHT

Elegant wall and ceiling mounted luminaires for indoor application

DUSTPROOF BATTEN LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0037

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Classic design with Aluminum body and PC diffuser
  • UV Stabilized polycarbonate diffuser for long durability
  • Wall Surface mounting or ceiling mounting
  • Soft light beam for high visual comfort

SPECIFICATIONS & DIMENSIONS

MODEL NO POWER (W) LUMENS (LM) EFFICIENCY (LM/W) SIZE A (mm) B (mm) C (mm)
OS-DPL-20W 20W 2000 lm 100 lm/w 2ft / 0.6m 585 77 26
OS-DPL-40W 40W 4000 lm 100 lm/w 4ft / 1.2m 1187 77 26
OS-DPL-60W 60W 6000 lm 100 lm/w 4ft / 1.2m 1187 77 26

PRODUCT FEATURES

  • Standard CCT: 3000K, 4000K, 6500K
  • Beam Angle: 120°
  • High Color Rendering: CRI > 80
  • High Power Factor: Pf > 0.9
  • Types of Protection: IP20
  • Long >50,000 hours lamp lifetime
  • Operates at 170-250VAC 50/60Hz
  • Class II Equipment
  • Product is made up of Polycarbonate and Aluminum
  • Application: Indoor Parking lots, offices, dry service areas, covered working halls, etc.
