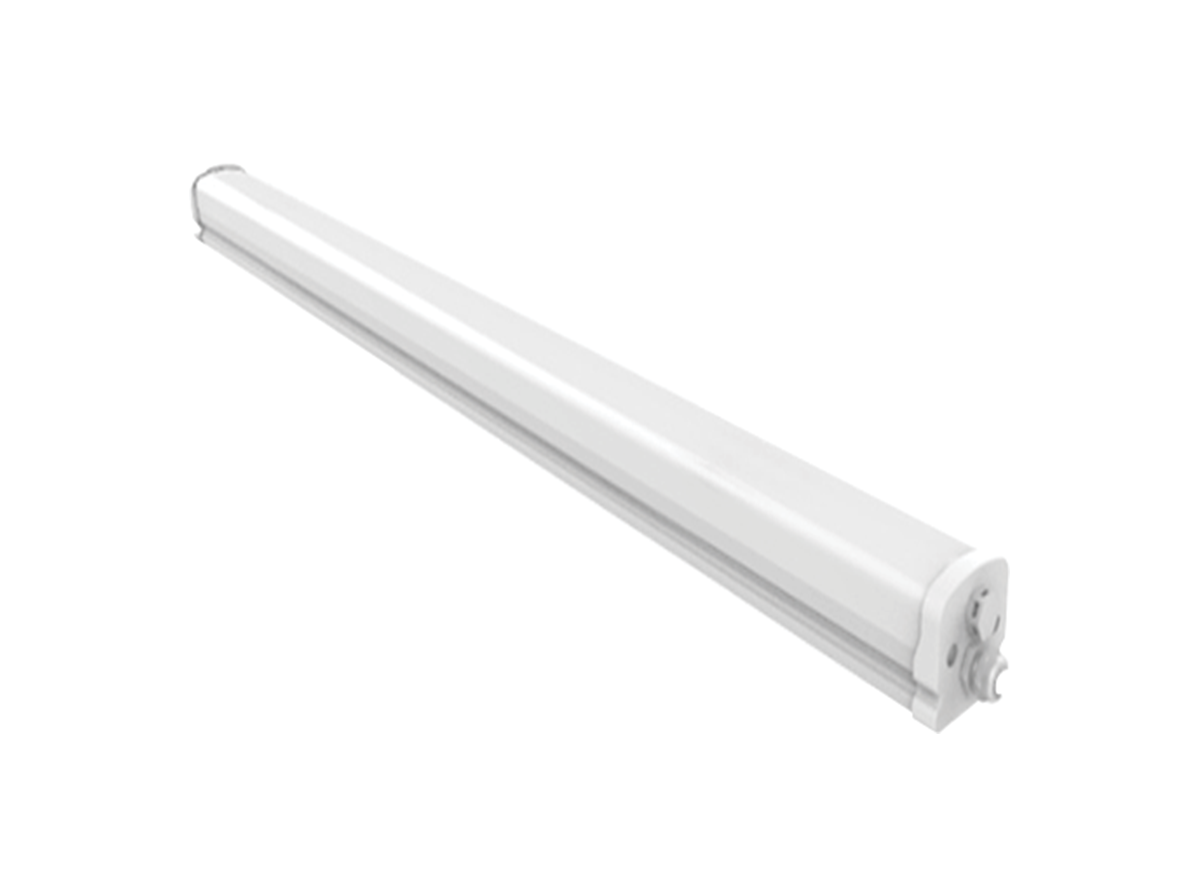

INTEGRATED T5 BATTEN LIGHT

Surface mounted linear luminaires for continous uniform illumination

INTEGRATED T5 BATTEN LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0033

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Suitable for indoor applications such as contour lighting, cove lighting, and backlighting
  • Homogeneous light output
  • UV Stabilized polycarbonate opal diffuser for long durability
  • Soft light beam for high visual comfort
  • Continuous linkable lighting without shadow

SPECIFICATIONS & DIMENSIONS

MODEL NO POWER (W) LUMENS (LM) EFFICIENCY (LM/W) SIZE A (mm) B (mm) C (mm)
OS-T5-L600 9W 1050 lm 116 lm/w 2ft / 0.6m 1187 24 34
OS-T5-L1200 18W 2100 lm 116 lm/w 4ft / 1.2m 587 24 34

PRODUCT FEATURES

  • Standard CCT: 3000K, 4000K, 6500K
  • Beam Angle: 180°
  • High Color Rendering: CRI > 80
  • High Power Factor: Pf > 0.9
  • Types of Protection: IP54
  • Long >50,000 hours lamp lifetime
  • Operates at 95-265VAC 50/60Hz
  • Class II Equipment
  • Product is made up of Polycarbonate
  • Application: Under shelf lighting, contour lighting, cove lighting, and light boxes
