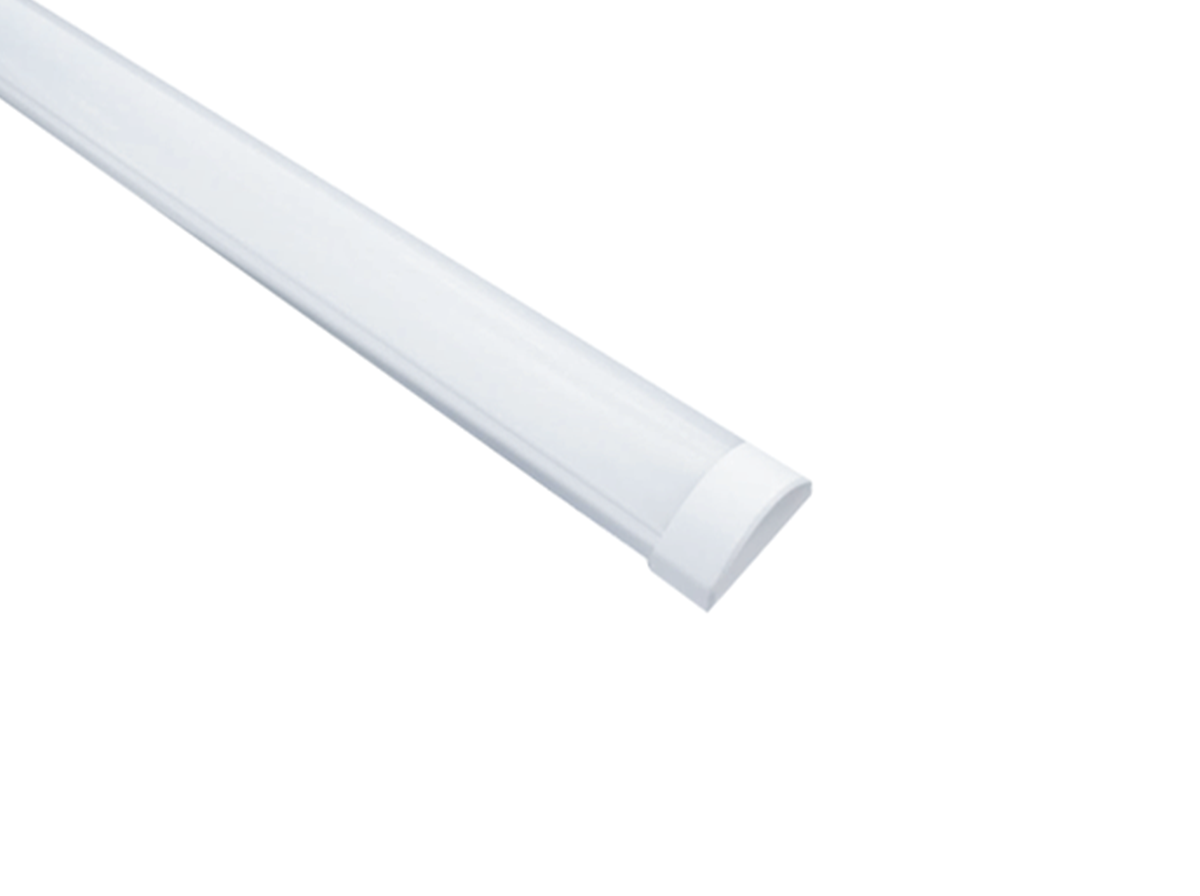

INTEGRATED TRI-PROOF LIGHT

Robust Integrated Tri-Proof Luminaires for moisture and dusty environment applications

INTEGRATED TRI-PROOF LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0032

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Waterproof, dustproof, vandal-proof, and vapor-proof for harsh environments
  • Classic design with PC body and PC diffuser
  • UV Stabilized polycarbonate opal diffuser for long durability
  • Wall Surface mounting or suspended mounting
  • Soft light beam for high visual comfort
  • Linear connectivity function for continuous linked lighting arrangement

SPECIFICATIONS & DIMENSIONS

MODEL NO POWER (W) LUMENS (LM) EFFICIENCY (LM/W) SIZE A (mm) B (mm) C (mm)
OS-TRIPF-20W 20W 2200 lm 110 lm/w 2ft / 0.6m 590 68 43
OS-TRIPF-40W 45W 4950 lm 110 lm/w 4ft / 1.2m 1190 68 43

PRODUCT FEATURES

  • Standard CCT: 3000K, 4000K, 6500K
  • Beam Angle: 270°
  • High Color Rendering: CRI > 80
  • High Power Factor: Pf > 0.9
  • Types of Protection: IP65 and IK08
  • Long >50,000 hours lamp lifetime
  • Operates at 170-250VAC 50/60Hz
  • Class II Equipment
  • Product is made up of Polycarbonate
  • Application: Parking lots, garages, underpasses, workshops, etc.
