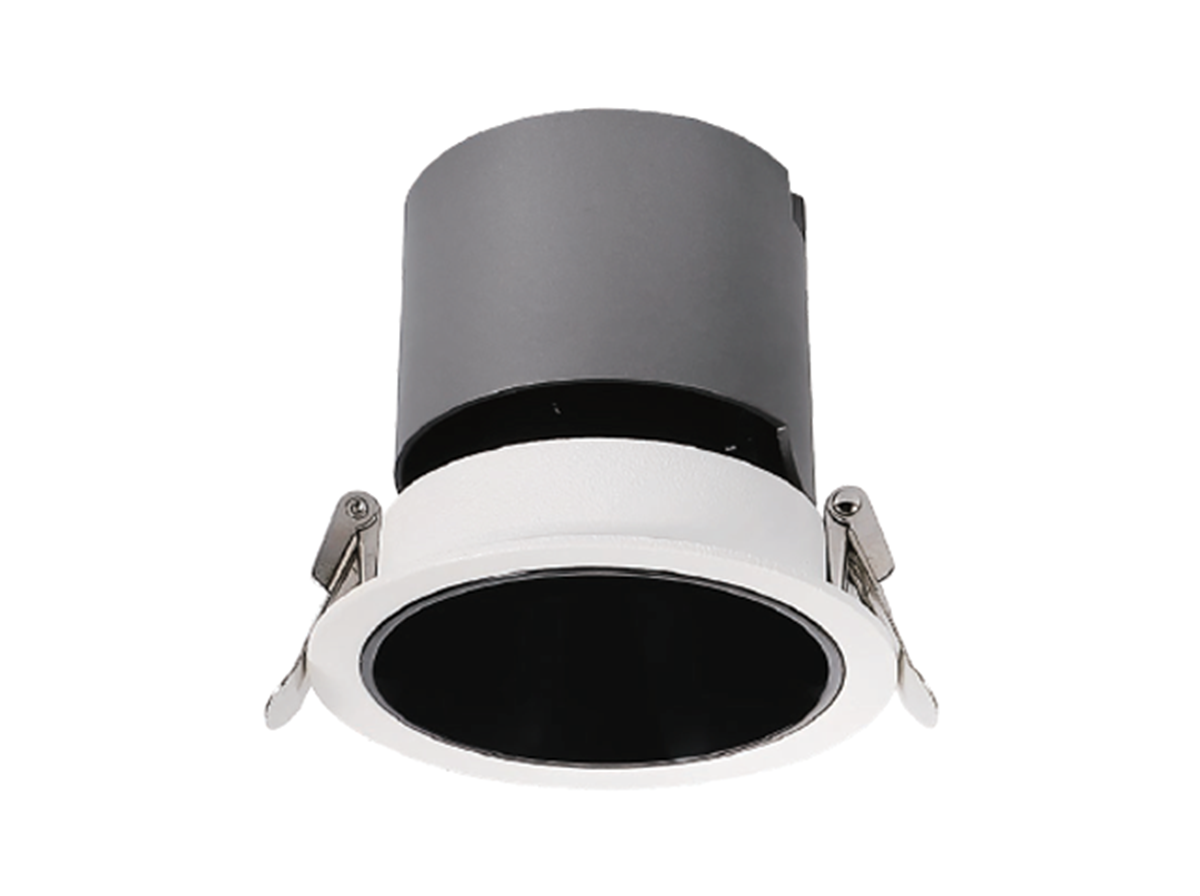

DEEP COB SPOTLIGHT

A perfect accent lighting tool for residential and commercial spaces

DEEP COB SPOTLIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0048

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Enhances object with unique lighting distribution
  • TIR lens technique application ensures precise light control, clean spot and even light distribution
  • Glare-free 45° design of glare-cut
  • Easily replaces halogen fixtures
  • Moveable focus enables perfect ambiance

DIMENSIONS ( mm )

MODEL A B CUTOUT
OS-G0706A Ø65 62 Ø55
OS-G1206A Ø85 80 Ø75
OS-G2406A Ø102 102 Ø95
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
OS-G0706A 7W 600 lm 85 lm/w
OS-G1206A 12W 1200 lm 90 lm/w
OS-G2406A 20W 1800 lm 90 lm/w

PRODUCT FEATURES

  • Standard CCT: 2700K, 3000K, 3500K and 4000K
  • Beam Angle: 24°
  • Ultra High Color Rendering: CRI>90
  • High Power Factor: Pf> 0.9
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Compatiable with DALI and 0-10V dimming technologies
  • Can be equipped with Emergency Power Bank
  • Available in Black Body and White Body with inner Black / white reflector
  • Class II Equipment
  • Product is made up of Aluminium
  • Application: Retail outlets, supermarket, offices, museums, houses etc.
