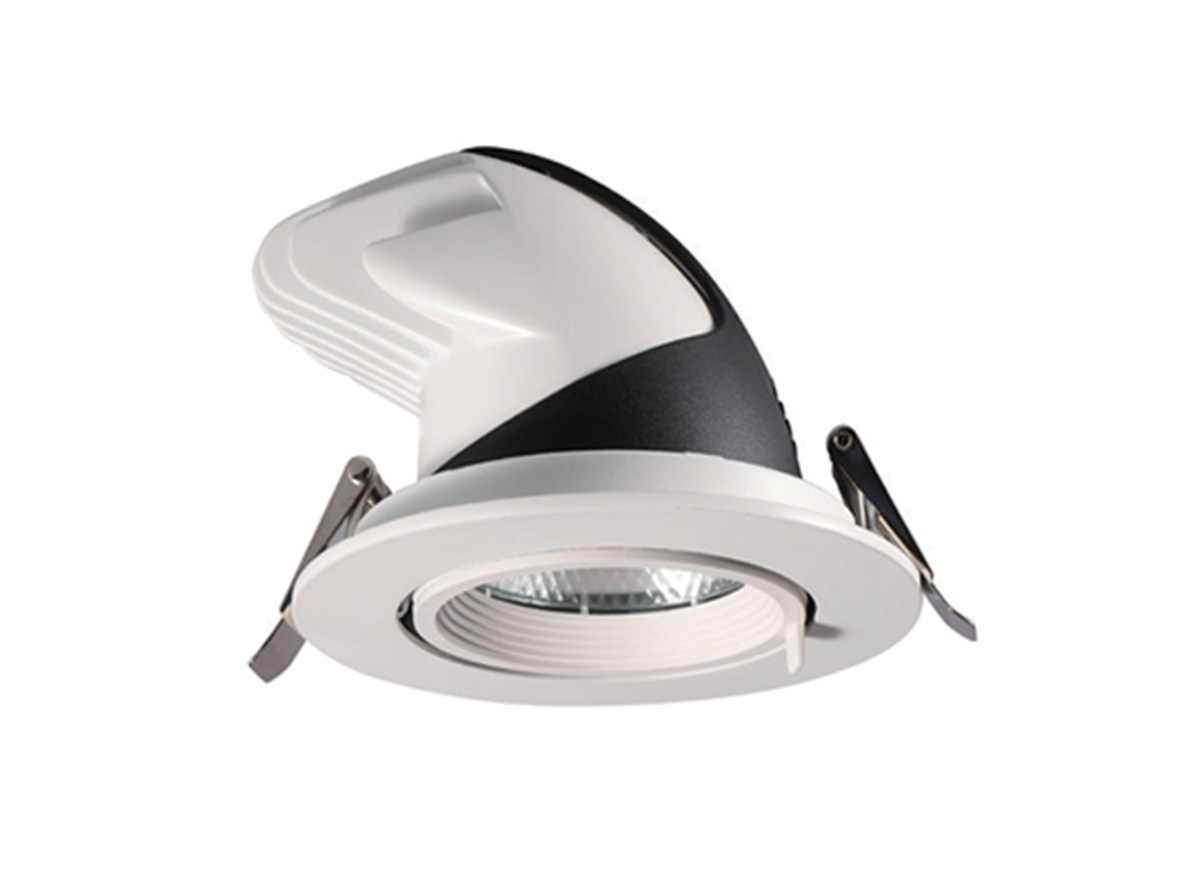

EYEBALL WALLWASHER LIGHT

A perfect indoor wall washer for residential and commercial spaces

EYEBALL WALLWASHER LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0047

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Precise focus on object with unique lighting distribution
  • TIR lens technique application ensures precise light control, clean spot and even light distribution
  • Easily replaces halogen fixtures
  • Moveable focus enables perfect ambiance

DIMENSIONS ( mm )

MODEL A B CUTOUT
OS-G1208 Ø90 75 Ø75
OS-G1808 Ø110 90 Ø95
OS-G3008 Ø135 105 Ø115
OS-G4008 Ø165 130 Ø145
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
OS-G1208 12W 960 lm 80 lm/w
OS-G1808 18W 1440 lm 80 lm/w
OS-G3008 30W 2400 lm 80 lm/w
OS-G4008 40W 3200 lm 80 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K, 3500K and 4000K
  • Beam Angle: 24°
  • Ultra High Color Rendering: CRI>90
  • High Power Factor: Pf> 0.9
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Compatiable with DALI and 0-10V dimming technologies
  • Class I Equipment
  • Product is made up of Aluminium
  • Application: Retail outlets, supermarket, offices, museums, houses etc.
