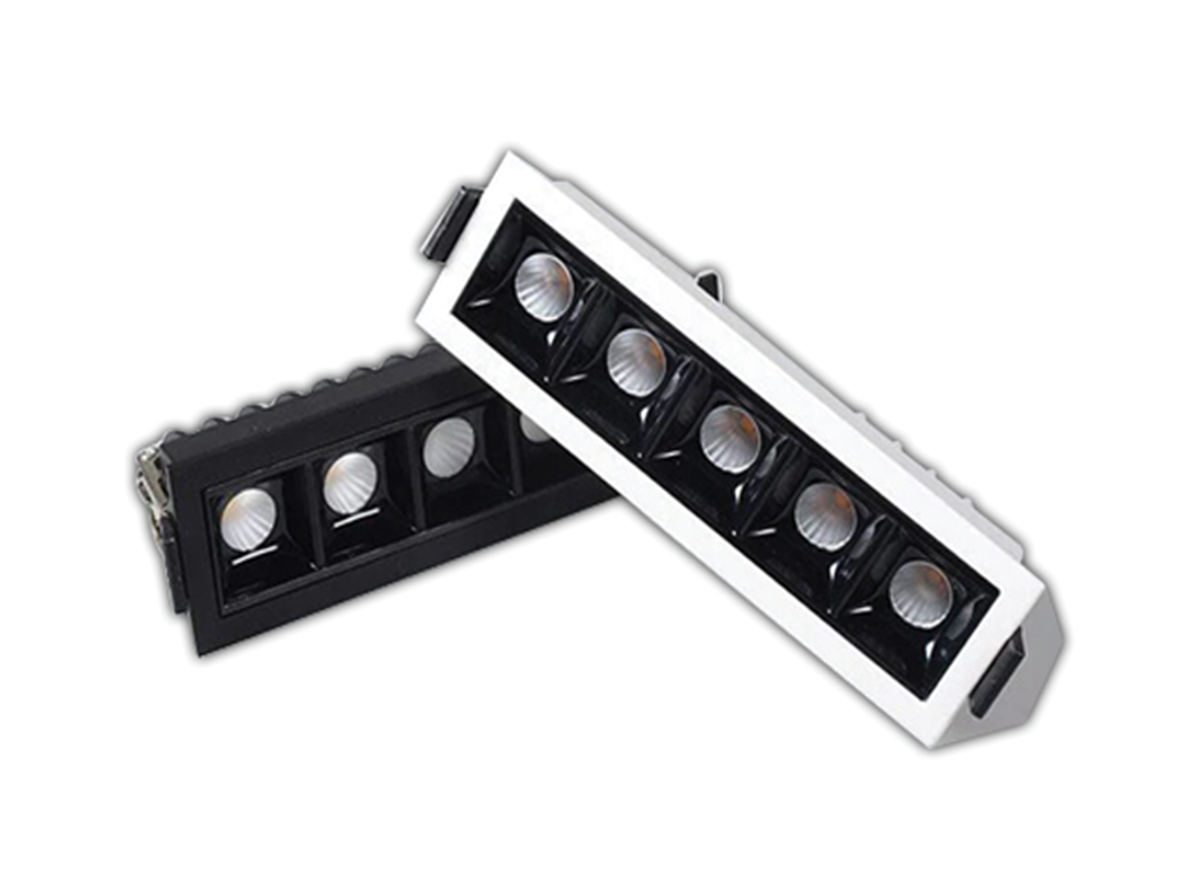

RECTANGULAR LED SPOTLIGHT

A perfect accent lighting tool for residential and commercial spaces

RECTANGULAR LED SPOTLIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0051

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Enhances object with unique lighting distribution
  • TIR lens technique application ensures precise light control, clean spot and even light distribution
  • Glare-free 45° design of glare-cut

DIMENSIONS ( mm )

MODEL A B C D (CUTOUT) E (CUTOUT)
OS-L0202C-2 75 45 50 75 45
OS-L0502C-5 147 45 50 147 45
OS-L1002C-10 279 45 50 279 45
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
OS-L0202C-2 2x2W 340 lm 85 lm/w
OS-L0502C-5 5x2W 850 lm 85 lm/w
OS-L1002C-10 10x2W 1700 lm 85 lm/w

PRODUCT FEATURES

  • Standard CCT: 2700K, 3000K, 3500K and 4000K
  • Beam Angle: 15°
  • Ultra High Color Rendering: CRI>90
  • High Power Factor: Pf> 0.9
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Compatiable with DALI and 0-10V dimming technologies
  • Can be equipped with Emergency Power Bank
  • Class II Equipment
  • Product is made up of Aluminium
  • Application: Retail outlets, supermarket, offices, museums, houses etc.
