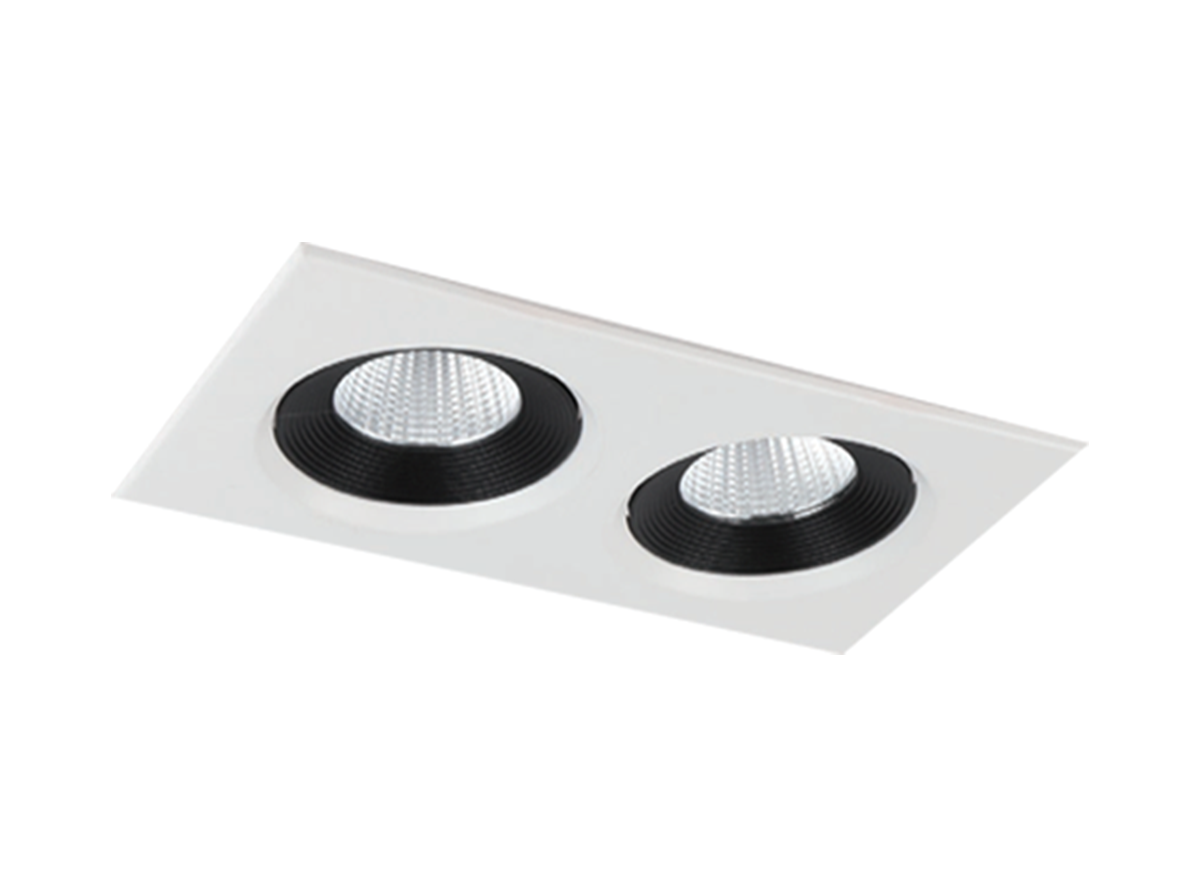

RECTANGULAR MCOB SPOTLIGHT

A perfect indoor wall washer for residential and commercial spaces

RECTANGULAR MCOB SPOTLIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0050

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Enhances object with unique lighting distribution
  • TIR lens technique application ensures precise light control, clean spot and even light distribution
  • Easily replaces halogen fixtures
  • Glare-free 45° design of glare-cut
  • Moveable focus enables perfect ambiance

DIMENSIONS ( mm )

MODEL A B C D (CUTOUT) E (CUTOUT)
OS-G0706B-1 95 95 65 Ø75 -
OS-G1206B-1 120 120 85 75 160
OS-G0706B-2 95 182 65 Ø95 -
OS-G1206B-2 120 220 85 95 190
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
OS-G0706B-1 1x7W 1200 lm 85 lm/w
OS-G1206B-1 1x12W 2400 lm 90 lm/w
OS-G0706B-2 2x7W 1200 lm 85 lm/w
OS-G1206B-2 2x12W 2400 lm 90 lm/w

PRODUCT FEATURES

  • Standard CCT: 2700K, 3000K, 3500K and 4000K
  • Beam Angle: 24°
  • Ultra High Color Rendering: CRI>90
  • High Power Factor: Pf> 0.9
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Compatiable with DALI and 0-10V dimming technologies
  • Can be equipped with Emergency Power Bank
  • Class II Equipment
  • Product is made up of Aluminium
  • Application: Retail outlets, supermarket, offices, museums, houses etc.
