RETAIL LIGHTING Spec Archive

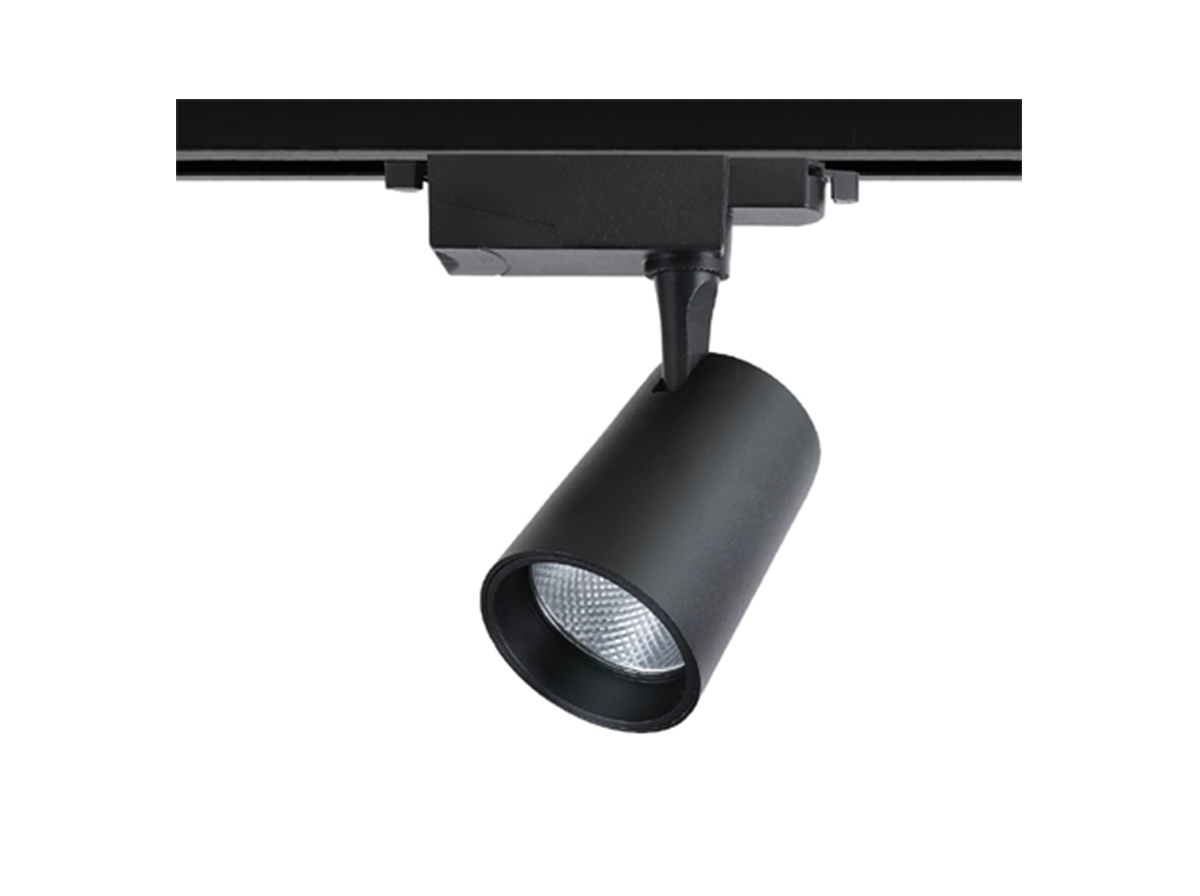

TRACK LIGHT

Ideal choice for commercial displays and accent lighting applications

TRACK LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0046

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Surface and track mounting options
  • Dual-circuit track connection compatible with most of the tracks in market
  • 90° vertical adjustable, 355° horizontal adjustable
  • Best-in-class COB platform provides stable and higher quality light
  • Deeply recessed cover design to offer good glare control
  • Combined optics design to offer even brightness
  • Extrusion aluminium body offers strong structure

DIMENSIONS ( mm )

MODEL NO A B C
OS-D1002A 95 Ø50 155
OS-D2410 105 Ø72 188
OS-D3210 120 Ø85 202
OS-D1010 130 Ø90 213
MODEL NO POWER (W) LUMENS ( LM ) EFFICIENCY (LM/W)
OS-D1002A 10W 900 lm 90 lm/w
OS-D2410 20W 2000 lm 100 lm/w
OS-D3210 30W 2850 lm 95 lm/w
OS-D1010 40W 3600 lm 90 lm/w

PRODUCT FEATURES

  • Standard CCT: 2700K, 3000K, 3500K, 4000K, 6000K
  • Beam Angle: 24°
  • High Color Rendering: CRI>90
  • High Power Factor: Pf> 0.9
  • Types of protection: IP20
  • Long >50,000 hours lamp lifetime
  • Operates at 220-240VAC 50/60Hz
  • Class II Equipment
  • Product is made up of Die-casting Aluminum
  • Application: Retail outlets, supermarket, offices, museums, houses etc.
