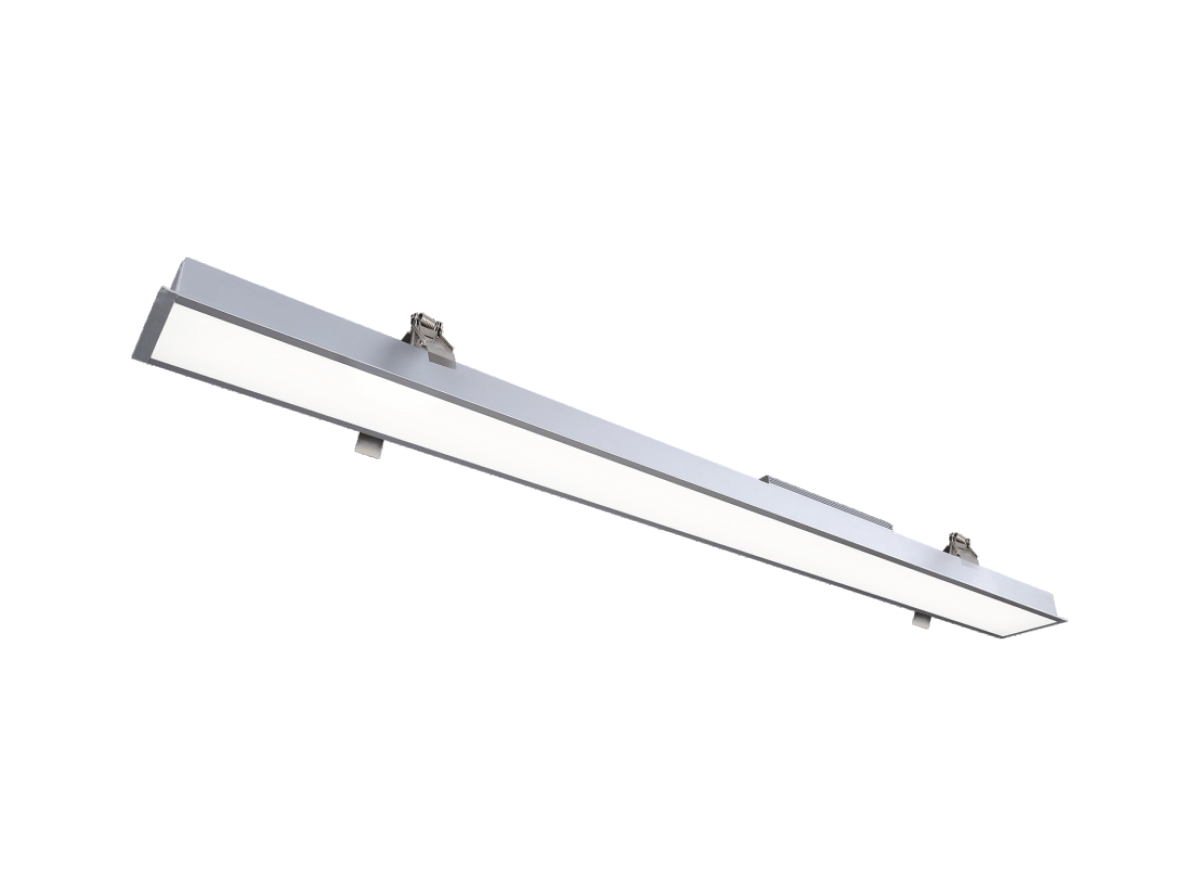

A recessed linear LED light series designed for smooth and uniform illumination in architectural spaces. Ideal for offices, commercial interiors, and modern environments with a sleek integrated design.
| Model | Art.No. | Input Voltage(V) | Power | CRI | CCT(K) | PF | Efficacy (LM/W) | LED | Beam (degree) | Installation | Material | Size(mm) W*H*L | Size(Inch) W*H*L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LL0105R |
LL0105R-1200 LL0105R-1500 LL0105R-2400 |
AC220-240V or AC120-277V 50/60Hz |
25W 36W 50W |
≥80 or ≥90 |
3000K/ 4000K/ 5000K |
≥0.9 | 105 | Osram | 120 | Recessed | Alu+PC |
50×30×1200 50×30×1500 50×30×2400 |
2.0×1.2×47.2 2.0×1.2×59.1 2.0×1.2×94.5 |
|
LL0106R-1200 LL0106R-1500 LL0106R-2400 |
36W 50W 70W |
65×35×1200 65×35×1500 65×35×2400 |
2.6×1.4×47.2 2.6×1.4×59.1 2.6×1.4×94.5 |
||||||||||
|
LL0147R-1200 LL0147R-1500 LL0147R-2400 |
40W 60W 80W |
95×35×1200 95×35×1500 95×35×2400 |
3.7×1.4×47.2 3.7×1.4×59.1 3.7×1.4×94.5 |
